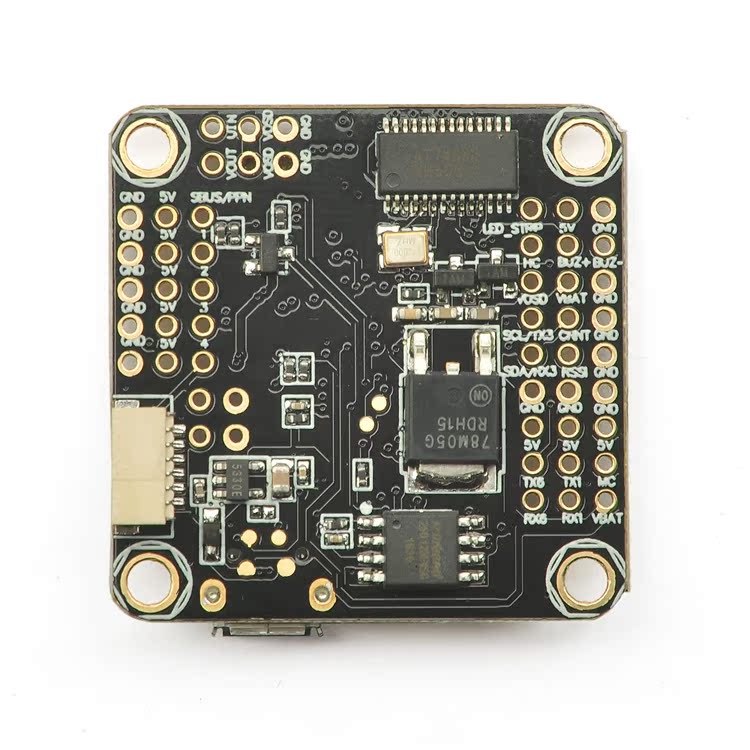

OMNIBUS F3's upgrade version, using F405 instead of F303, could run faster loop time. classic OMNIBUS design, using F4 MCU controls OSD over SPI bus in DMA mode, OSD Configation has been incl. in Betaflight GUI. Incl. 128Mbit Flash, please always use BEC for the FC. MPU6000 at SPI bus.
Supported by BETAFLIGHT and dRonin
https://github.com/betaflight/betaflight/releases http://dronin.org/ Features: • STM32 F405 MCU, Runs Betaflight 3.0.1 firmware • SBUS/PPM input (Pinheaders) • 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders) • Only 36x36mm, mount holes 30.5x30.5mm • NO BARO • SPI Sensor MPU6000 • 128Mbit Flash Package incl.: • 1x FC
